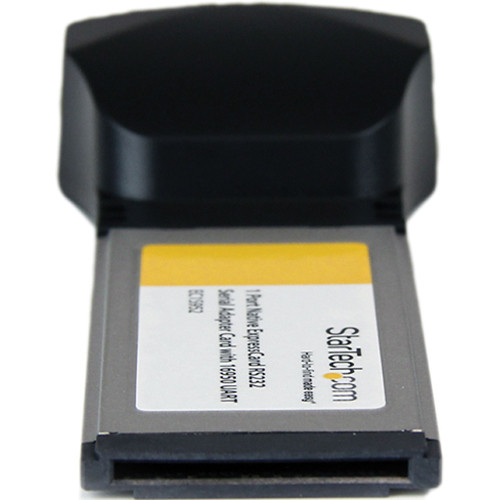

StarTech 1-Port Native ExpressCard RS232 Serial Adapter Card
$47.61
Add an RS232 serial port to your laptop with StarTech’s 1-Port Native ExpressCard Serial Adapter, featuring 16950 UART and low power consumption.
In stock
Description
The 1-Port Native ExpressCard RS232 Serial Adapter Card from StarTech enables you to add a reliable RS232 serial port to your laptop or ExpressCard-equipped desktop computer, enhancing connectivity and performance. Based on a single-chip architecture, it provides native PCIe communication, reducing CPU load by up to 48% and minimizing power consumption for efficient operation.

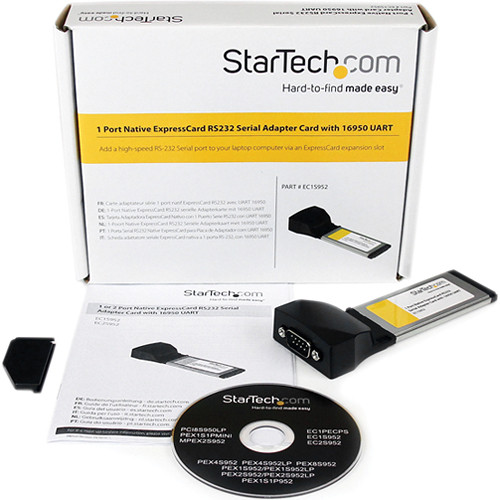

The adapter comes with a stabilizer bracket, ensuring a secure fit in both 34mm and 54mm ExpressCard slots. With support for baud rates of up to 115.2 Kb/s, a 128-byte FIFO buffer, and a high-performance 16C950 UART, this ExpressCard serial card ensures optimal communication with RS232 serial devices, making it ideal for applications requiring reliable serial connectivity.
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 9 × 8 × 2 in |
| Interface | Serial |
| Port | 1 |
| Port Style | Integrated on card |
| Bus Type | ExpressCard |
| Card Type | 34 mm ExpressCard |
| Chipset ID | PLX/Oxford – OXPCIe952 |
| Connector Type | 1 x ExpressCard 34 mm |

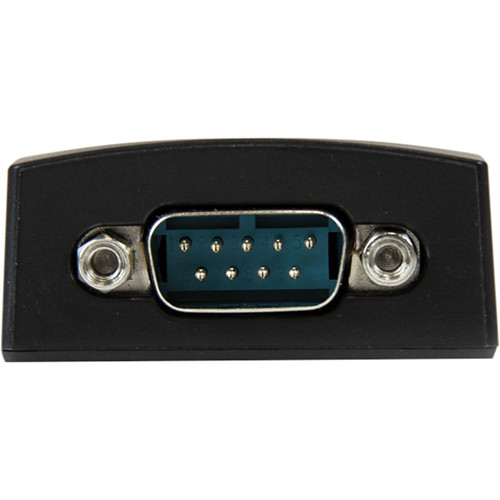

| External Ports | 1 x DB-9 (9-pin; D-Sub) male |
| Serial Protocol | RS-232 |
| Baud Rate | Maximum: 115.2 Kb/s |
| FIFO | 128 Bytes |
| OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000 Windows Server 2008 R2, Linux |
| Relative Humidity | 5 to 85% |
| Temperature | Operating: 14 to 176°F (-10 to 80°C)<br>Storage: -4 to 212°F (-20 to 100°C) |
| Compliance | CE, FCC, RoHS |
| Dimensions (L x W x H) | 4.5 x 1.8 x 0.8" (115.0 x 45.0 x 20.0 mm) |
