Description
Extend Your Signal Reach with Smart-AVI SDX-Plus-TX

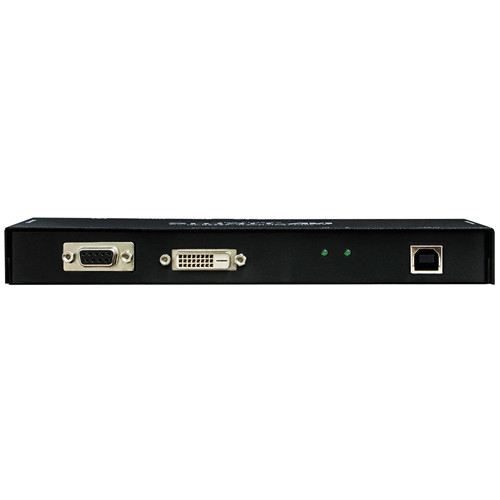

The Smart-AVI SDX-Plus-TX is a powerful HDBaseT transmitter designed to extend DVI-D, USB, RS-232, and audio signals up to 400 feet over a single CAT5/5e/6 cable. This innovative solution simplifies remote display control by consolidating multiple signal types into one cable, eliminating the clutter of numerous wires and enhancing your setup’s flexibility and scalability.
Key Features:
- Long-Range Signal Transmission: Extend your DVI-D signal up to 400 feet without degradation.
- Multi-Signal Support: Seamlessly transmits USB keyboard and mouse, RS-232, and audio alongside DVI-D video.
- HDBaseT Technology: Utilizes the latest HDBaseT technology for reliable and high-quality signal transmission.
- Simplified Connectivity: Uses a single CAT5/5e/6 cable for multiple signal types, reducing cable clutter.
- Remote Control Capability: Enables control of displays or devices from a distance, ideal for installations where direct access is limited.
To complete the setup, the SDX-Plus-RX receiver is required at the display end, ensuring a comprehensive solution for your signal transmission needs. Upgrade your audiovisual setup with the Smart-AVI SDX-Plus-TX transmitter, designed for reliability, ease of use, and future-proofing your installation.
Additional information
| Dimensions | 22 × 16 × 10 in |
|---|---|
| Format | DVI-D single line |
| Maximum Pixel Clock | 165 MHz |
| Interface | 1 x USB type B (female) |
| Resolution | Up to 1920 x 1200 @ 60 Hz and up to 4K/2K (3840 x 2160) @ 30 Hz |
| DDC | 5 Vpp (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20' (6 m) |
| Signal Type | OHCI/UHCI (USB 1.1) |
| IR | Interface: 1 x 3.5 mm (female)<br> |
| Power | External: 100 to 240 VAC / 5 VDC, 3 A @ 20 W |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
| Humidity | Up to 95% |
| Dimensions (W x H x D) | 8.3 x 1.0 x 3.6" (21.1 x 2.5 x 9.1 cm) |
