Description

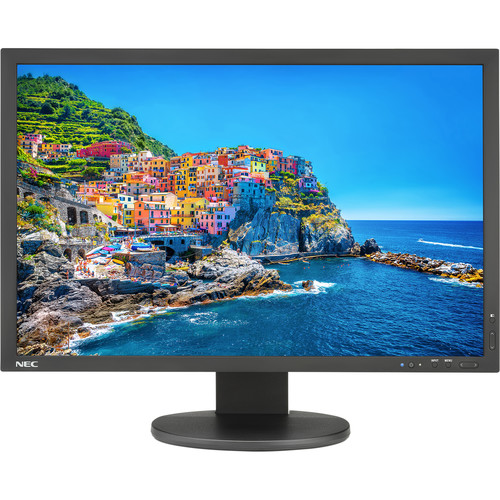

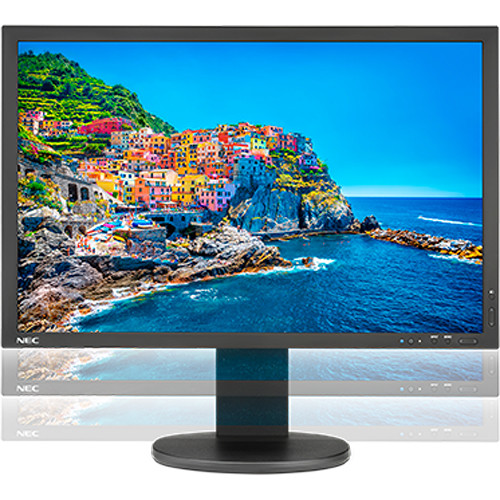

NEC PA243W-BK-SV 24.1″ Wide Gamut IPS Monitor for Precise Color Representation
The NEC PA243W-BK-SV 24.1″ 16:10 Wide Gamut IPS Monitor is designed for professionals who require accurate on-screen color representation. With support for various color standards and a 14-bit 3D LUT, this monitor ensures precise color accuracy.
Key Features
- 24.1″ IPS display with 1900 x 1200 resolution
- Wide color gamut for enhanced color accuracy
- 14-bit 3D LUT for precise color representation
- Multiple input options: DisplayPort, DVI-D, HDMI, VGA
- Picture-in-picture and picture-by-picture capabilities

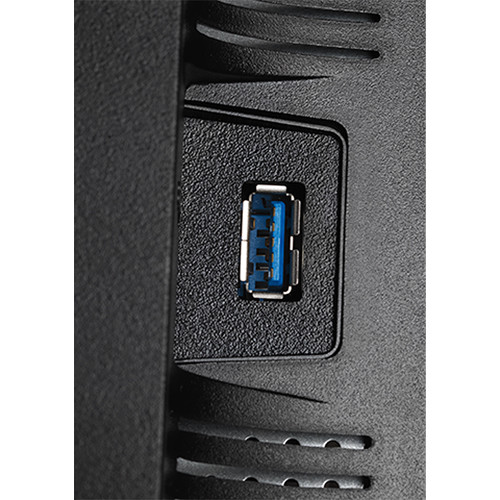

- USB 3.1 hub for convenient connectivity
- 178° horizontal and vertical viewing angles
- 1000:1 contrast ratio and 350 cd/m² brightness rating
This monitor is ideal for creative professionals who require accurate color representation. The wide color gamut and 14-bit 3D LUT ensure that colors are displayed accurately, making it perfect for graphic design, photography, and video editing applications.
The NEC PA243W-BK-SV is also equipped with multiple input options, including DisplayPort, DVI-D, HDMI, and VGA, making it easy to connect to various devices. The built-in USB 3.1 hub provides convenient connectivity for peripherals.
The monitor’s IPS panel provides wide viewing angles, ensuring that colors remain accurate even when viewed from the side. The 1000:1 contrast ratio and 350 cd/m² brightness rating ensure that images are displayed with clarity and precision.
With its robust feature set and precise color representation, the NEC PA243W-BK-SV 24.1″ Wide Gamut IPS Monitor is an excellent choice for professionals who demand accuracy and quality in their work.
Additional information
| Weight | 24.8 lbs |
|---|---|
| Dimensions | 25.5 × 19.3 × 12.5 in |
| Panel Technology | AH-IPS |
| Lookup Table | 14-bit (3D) |
| Environmental Conditions | Operating Temperature: 41 to 95°F / 5 to 35°C<br> Operating Humidity: 20 to 80%<br> Operating Altitude: 16, 404' / 5000 m<br> Storage Temperature: 14 to 140°F / -10 to 60°C<br> Storage Humidity: 10 to 85%<br> Storage Altitude: 40, 000' / 12, 192 m |

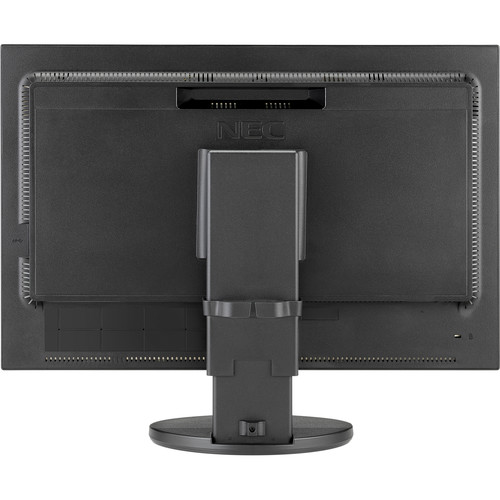

| VESA Mount Standard | 100 x 100 mm |
| Power Consumption | On: 35 W<br> Power Savings Mode: 0.3 W |

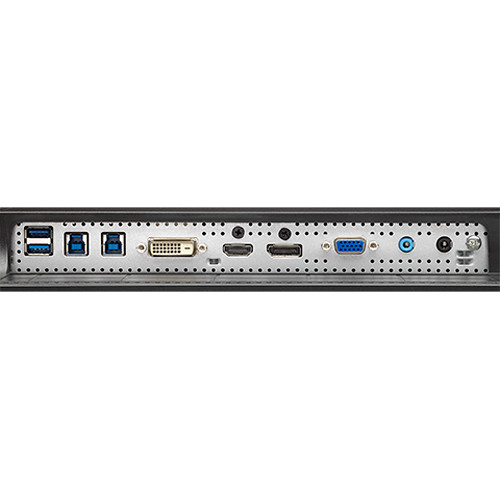

| Input Connectors | 1 x DisplayPort<br> 1 x DVI-D<br> 1 x HDMI<br> 1 x VGA<br> USB 3.1 Hub: 2 x up / 3 x down with DisplaySync Pro |
| Speakers | 2 x 1 W |
| Input Signal | Video<br> Analog RGB 0.7 Vp-p/75 Ohms<br> Sync<br> Separate Sync: TTL Level (positive/negative)<br> Composite Sync: TTL Level (positive/negative)<br> Composite Sync on Green: (0.3 Vp-p negative/0.7 Vp-p positive) |
| Synchronization Range | Horizontal (Analog/Digital): 31.5-118.4 kHz/31.5-118.4 kHz<br> Vertical: 50-85 Hz |
| Displayable Colors | 1.07 billion out of 4.3 trillion (10-bit DisplayPort or HDMI)<br> 16.7 million out of 1.05 billion (8-bit) |
| Color Gamut | Adobe RGB Coverage/Size: 112.4% / 99.6%<br> NTSC Coverage/Size: 107.4% / 97.1%<br> sRGB and Rec. 709 Coverage / Size: 151.6% / 100.0%<br> DCI P3 Size/Coverage: 111.7% / 96.9%<br> Rec. 2020 Size/Coverage: 80.2% / 80.1%<br> SMPTE: 163.7% / 100.0%<br> ISO Coated V2 Size/Coverage: 163.7% / 100.0% |
| Viewable Image Size | 24.1" / 61.2 cm |
| Response Time | 8 ms |
| Viewing Angles (H/V) | 178°/178° (89U/89D/89L/89R) @ CR>10 |
| Contrast Ratio | 1000:1 |
| Brightness | 350 cd/m² |
| Backlight Type | White gamut W-LED<br> PWM Frequency: 20 kHz |
| Pixels Per Inch | 93 @ native resolution |
| Pixel Pitch | 0.27 mm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Environmental Compliance | RoHS |
