Description

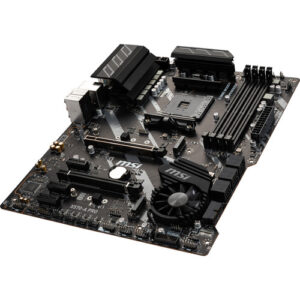

The MSI X570-A PRO AM4 ATX Motherboard is built on the AMD X570 chipset, making it a high-performance motherboard for gaming and content creation, supporting second- and third-generation AMD Ryzen processors. It features four memory slots for up to 128GB of dual-channel DDR4 RAM, overclockable to 4400 MHz, ensuring smooth multitasking and high-speed data processing. With six SATA III ports and two M.2 slots, it offers ample storage options. For graphics and expansion, it includes two PCIe 4.0 x16 slots and three PCIe 3.0 x1 slots, incorporating the latest in PCIe technology for fast graphics cards and peripherals. Additionally, it features Realtek 8111H Gigabit Ethernet for fast networking and Realtek ALC1220 7.1-channel HD audio for immersive sound.
Additional information
| Weight | 2.78 lbs |
|---|---|
| Dimensions | 13.8 × 10.7 × 2.7 in |
| Chipset | AMD X570 |
| RAID Support | RAID 0, 1, 10 (SATA) |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC1220 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 4.0 x16 (x4 mode)<br />3 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Realtek 8111H Gigabit |
| Display | 1 x HDMI 1.4 |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
