Description

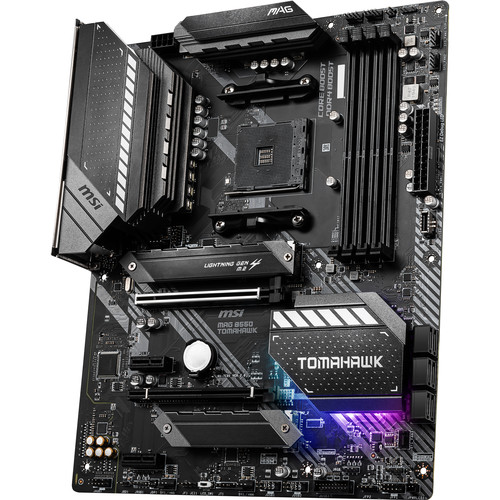

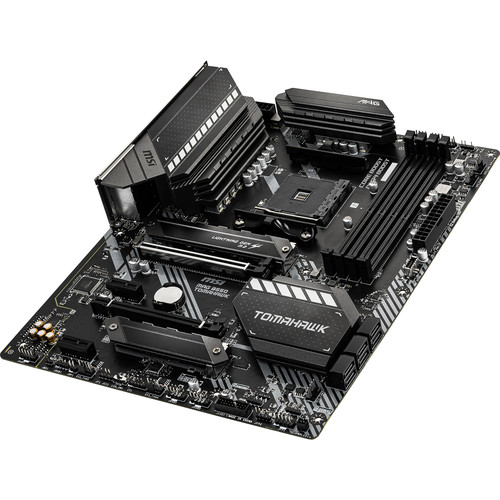

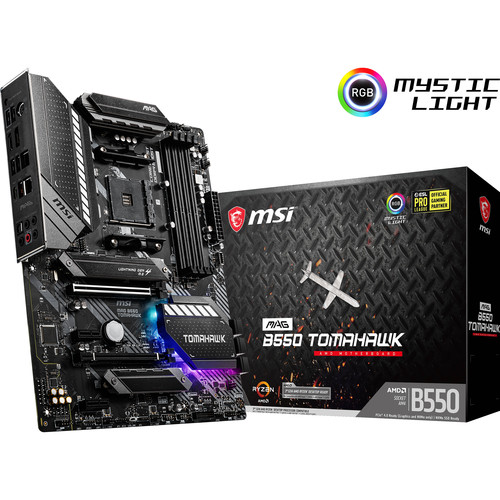

Elevate Your Gaming Experience with MSI MAG B550 TOMAHAWK Motherboard
Build your dream gaming PC with the MSI MAG B550 TOMAHAWK AM4 ATX Motherboard, designed for gaming enthusiasts who demand control and high performance. Powered by the AMD B550 chipset, this motherboard offers a robust foundation for your custom gaming rig.
Key Features:
- AM4 CPU socket for AMD processors
- Four DDR4 RAM slots for dual-channel memory
- Six SATA III ports and two M.2 PCIe NVMe SSD slots for storage expansion
- PCIe 4.0 x16 and PCIe 3.0 x16 slots for graphics cards and other peripherals
- Multiple USB 3.2 Gen 1 and USB 2.0 ports for fast data transfer and connectivity
- Dual Ethernet ports for faster bandwidth and teaming capabilities
- Compatible with Windows 10 (64-bit) operating system
This motherboard is engineered to deliver enhanced system performance, faster data transfer rates, and expanded connectivity options. With the MSI MAG B550 TOMAHAWK, you can enjoy a seamless gaming experience with its advanced features and durable construction.
Ideal for gamers seeking high-performance and customization, this MSI motherboard provides the perfect blend of power, flexibility, and reliability. Upgrade your gaming setup with the MSI MAG B550 TOMAHAWK AM4 ATX Motherboard and unlock new levels of gaming performance.
Additional information
| Weight | 4.2 lbs |
|---|---|
| Dimensions | 13.6 × 10.7 × 2.7 in |
| Chipset | AMD B550 |
| U.2 | None |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC1200/ALC1220P (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />6 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16<br />2 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1 (M.2) |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
| CPU Socket | AM4 |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 4866, 5000, 5100 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x 2.5Gigabit<br />1 x Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
