Description

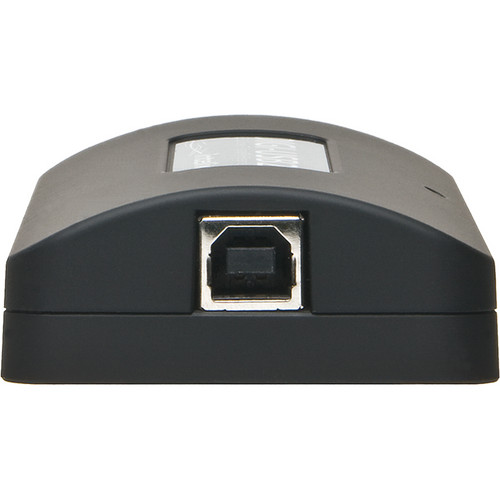

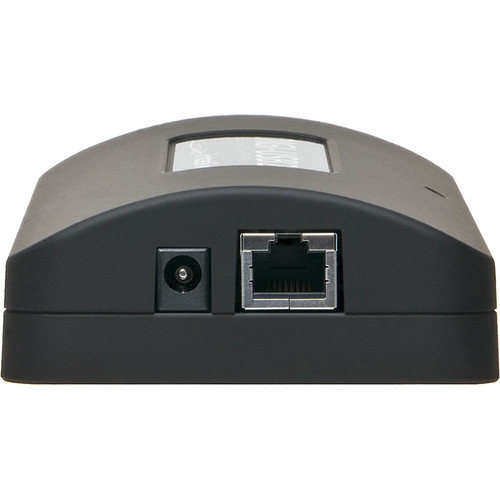

The Intelix USB 2.0 Extender Set extends computer USB 1.1 and USB 2.0 signals up to 330’ over twisted pair cabling, achieving high-speed data transfer rates of up to 480 Mb/s. Suitable for various applications including keyboard and mouse extension, remote data ports, up to four USB hubs, security applications, and Smart Board applications. Powered at either the client or host device, it utilizes Cat5e/6/6A cabling for reliable connectivity.
Additional information
| Weight | 1.4 lbs |
|---|---|
| Dimensions | 9.1 × 6 × 2.4 in |
| I/O Connections | USB<br /> Local: 1 x USB type B<br /> Remote: 1 x USB type A<br /> <br /> Twisted Pair<br /> Local: 1 x 8P8C port (shielded RJ45)<br /> Remote: 1 x 8P8C port (shielded RJ45)<br /> <br /> 24 VDC power supply<br /> Local: 0.22" (5.50 mm) outside diameter, 0.08" (2.10 mm) inside diameter barrel |
| Maximum Distance | Cat5E: 330' (100 m) |
| Supported Signals | USB 2.0: Up to 480 Mb/s<br>USB 1.1: Up to 12 Mb/s |
| Enclosure | Black rubberized ABS plastic |
| Power | 500 mA (to USB devices) |
| Power Consumption | Maximum: 4.3 W |
| Power Supply | 24 VDC |
| Mounting | Slots for cable ties |
| Temperature | Operating: 32 to 122°F (0 to 50°C)<bR>Storage: -4 to 158°F (-20 to 70°C) |
| Humidity | Operating: 20 to 80%, non-condensing<br>Storage: 10 to 90%, non-condensing |
