Description

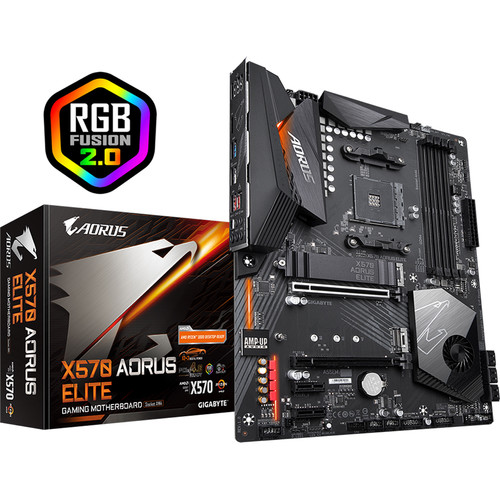

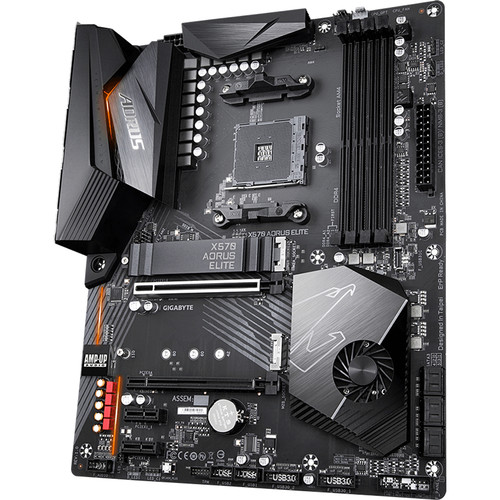

Gigabyte X570 AORUS ELITE AM4 ATX Motherboard: Unleash Next-Gen Performance
Elevate your computing experience with the Gigabyte X570 AORUS ELITE AM4 ATX Motherboard, designed to harness the full potential of 2nd and 3rd generation AMD Ryzen processors. Built on the robust AMD X570 chipset and featuring an AM4 socket, this motherboard is the perfect foundation for a high-performance gaming or productivity rig.
Key Features:
- Supports 2nd and 3rd generation AMD Ryzen processors with AM4 socket
- Four DDR4 memory slots for up to 128GB of dual-channel RAM, overclockable to 4000 MHz
- Six SATA III ports and dual M.2 slots for extensive storage options
- PCIe 4.0 x16 slot for next-generation graphics cards
- 7.1-channel HD audio courtesy of the Realtek ALC1200 codec
The Gigabyte X570 AORUS ELITE is engineered to deliver exceptional performance and future-proof your system. With its advanced cooling solutions and comprehensive overclocking capabilities, it’s ideal for enthusiasts and gamers seeking to push their hardware to the limit. Whether you’re building a new system or upgrading an existing one, this motherboard provides the stability, speed, and features needed to take your computing to the next level.
Experience the difference with Gigabyte’s X570 AORUS ELITE, where cutting-edge technology meets reliability and performance. Upgrade your PC today and unlock the full potential of your AMD Ryzen processor.
Additional information
| Weight | 3.6 lbs |
|---|---|
| Dimensions | 13.3 × 10.8 × 3.3 in |
| Chipset | AMD X570 |
| RAID Support | RAID 0, 1, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC1200 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| ROM | 128 Mb |
| Diagnostics | Clear CMOS |
| LED Header | 3 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU |
| Liquid Cooling | 1 x Water Flow-Rate Sensor |
| Air Cooling | 1 x 4-Pin CPU<br />2 x 4-Pin System |
| Multi-GPU Support | Quad-GPU AMD CrossFireX |
| Expansion Slots | 2 x PCIe 4.0 x16<br />2 x PCIe 4.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| Ethernet / Controller | 1 x Intel Gigabit |
| Display | 1 x HDMI 2.0 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
