Description

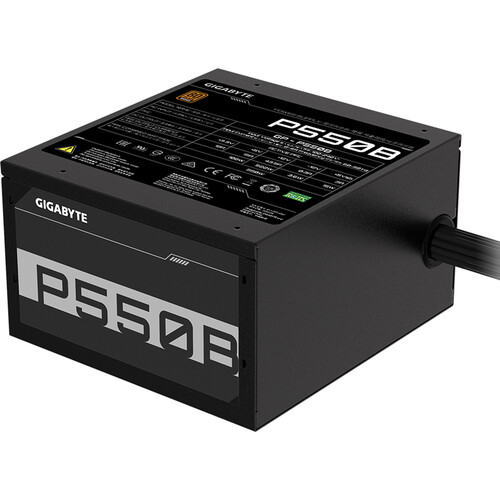

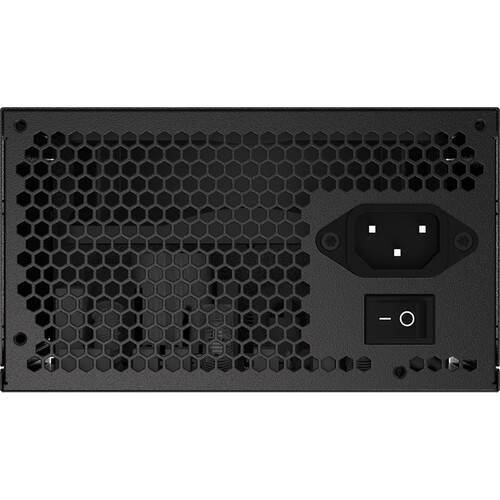

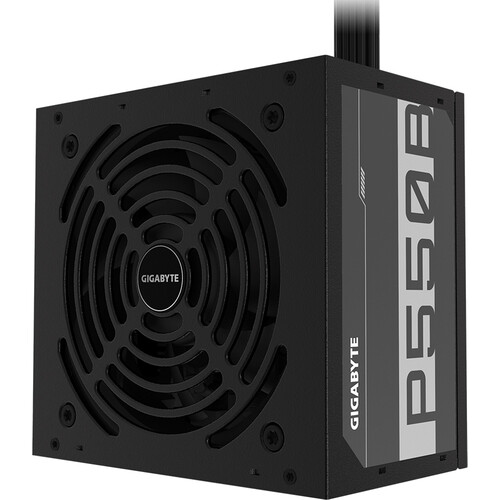

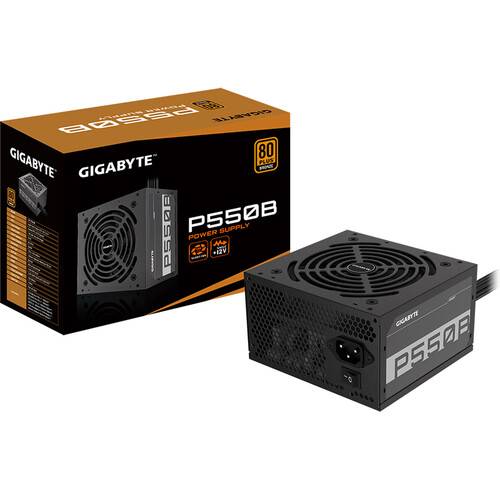

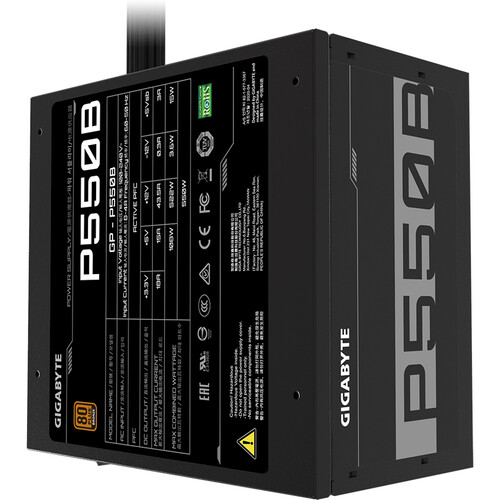

Unlock Superior Performance with Gigabyte GP-P550B Power Supply
Elevate your computer’s capabilities with the Gigabyte GP-P550B 550W 80 PLUS Bronze Power Supply, designed to deliver reliable and efficient power. This PSU adheres to the Intel ATX 12V v2.31 form factor, ensuring compatibility and ease of installation.
Key Features:
- 550W Power Output: Ample power for most modern systems.
- 80 PLUS Bronze Certification: Achieves up to 85% efficiency, reducing energy waste and lowering electricity bills.
- Single +12V Rail: Simplifies power delivery and enhances system stability.
- 120mm Hydraulic Bearing Fan: Provides quiet and efficient cooling with a lifespan exceeding four years.
- Comprehensive Connectivity: Includes 2 PCIe connectors for graphics cards, 6 SATA connectors for storage devices, 3 4-pin peripheral connectors, and a 4-pin floppy connector.
- Flat Cables: Improves airflow within the case and simplifies cable management.
The Gigabyte GP-P550B is engineered to meet the demands of both casual users and enthusiasts. Its robust design and efficient operation make it an ideal choice for building or upgrading a PC. With its 80 PLUS Bronze rating, this PSU not only reduces your energy footprint but also ensures a reliable power supply for your components.
Upgrade your system’s power supply to the Gigabyte GP-P550B and experience the difference in performance and efficiency. Perfect for gamers, content creators, and anyone seeking a dependable power solution.
Additional information
| Weight | 4.37 lbs |
|---|---|
| Dimensions | 10.2 × 8.1 × 4.9 in |
| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />6 x 15-Pin SATA<br />3 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Max Load for +5 Vsb | 3 A |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.31 |
| Form Factor | ATX |
| Fan Life Expectancy | 35, 000 Hours |
| Bearing Type | Hydraulic |
| Fan Size | 120 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 16 ms |
| Efficiency | 85% at 50% Load |
| Active Power Factor Correction | Yes |
| Efficiency Rating | 80 PLUS Bronze |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 8 to 4 A |
| Max Power for -12 V | 3.6 W |
| Max Power for +5 Vsb | 15 W |
| Cable Design | Flat |
| Max Load for +5 V | 15 A |
| Max Load for +3.3 V | 18 A |
| Combined Power for +3.3/+5 V | 108 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 522 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 550 W |
| EPS Connector Distances | 23.6" / 600 mm |
| ATX Connector Distance | 21.7" / 550 mm |
| Floppy Connector Distances | 4.7" / 120 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.7" / 550 mm<br />5.9" / 150 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
