Description

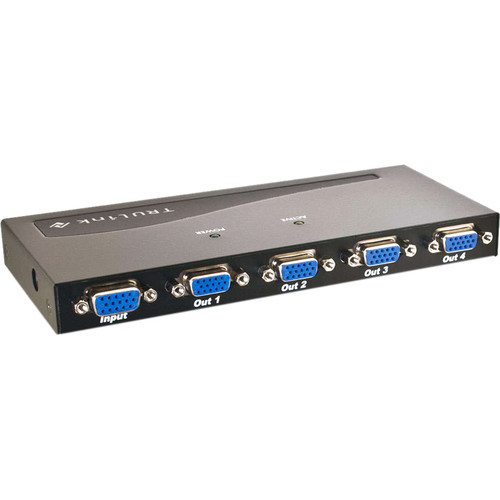

The C2G TruLink 4-Port UXGA Monitor Splitter/Extender is designed to take a single VGA signal and mirror it across four VGA monitors. With one VGA input and four VGA outputs, this splitter allows for easy setup and can be daisy-chained to support additional displays without requiring software or interface cards. Ideal for applications that need the VGA signal to be extended up to 210 feet, such as signage environments.

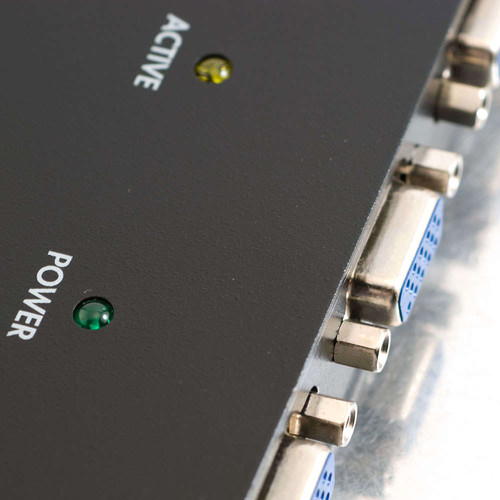

The TruLink 4-Port VGA Splitter supports high resolutions of up to 1920 x 1440, making it compatible with XGA, SVGA, VGA, and MultiSync monitors. It features a durable all-metal housing and includes power and activity LED indicators for status monitoring. The color-coded connectors simplify the connection process, ensuring a straightforward installation.
Additional information
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 11.8 × 8.4 × 2.8 in |

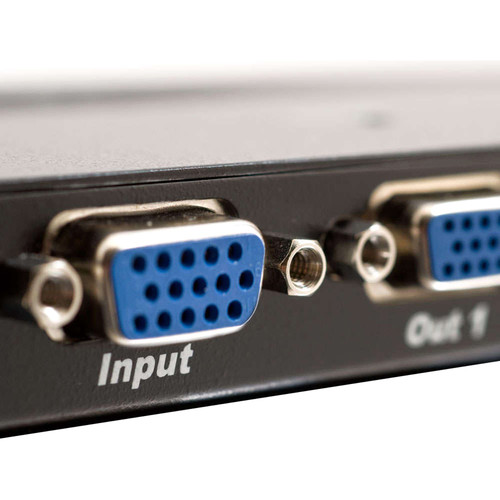

| Connectors | Input: 1 x 15-pin VGA female<br> Outputs: 4 x 15-pin VGA female |

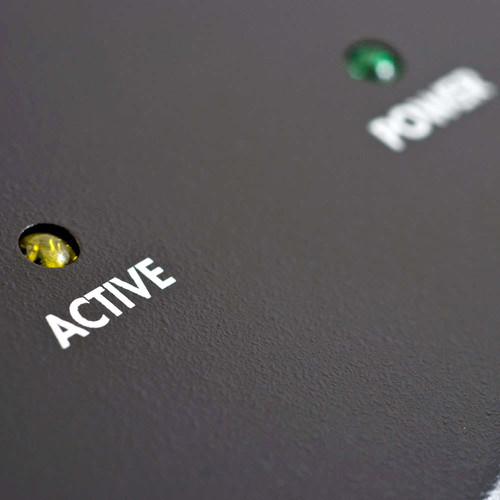

| Indicators | LED, Power<br> LED, Activity |
| Video Specifications | Signal Types Supported: VGA, SVGA, XGA, UXGA, and MultiSync<br> Video Bandwidth: 350 MHz<br> Maximum Resolution Supported: 1920 x 1440 at 80 Hz |
| Maximum Cable Length Supported | 210' / 64 m |
| Adapter Specifications | Power Input: 100 to 240 VAC, 50/60 Hz<br> Power Output: 9 VAC, 600 mA<br> Pin Diameter: 5.5 mm<br> Center Pin Polarity: Positive |
| Minimum Requirements | System with a 15-pin VGA video card<br> male to male 15-pin VGA cable (to connect the splitter to a computer) <br> male to male 15-pin VGA cables (to connect the splitter to the monitors) <br> Each cable must have UXGA resolution to deliver the true potential resolution of this splitter. |
| Material of Construction | Metal |
