Description

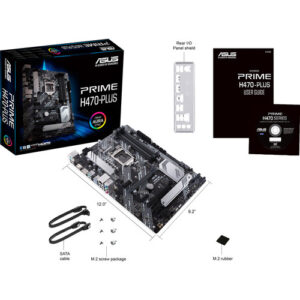

The ASUS Prime H470-PLUS/CSM LGA 1200 ATX Motherboard is engineered for 10th Gen Intel Core, Pentium Gold, and Celeron processors with its LGA 1200 socket, offering a robust foundation for your build. It features four DDR4 RAM slots capable of supporting up to 128GB of dual-channel memory at speeds of up to 2933 MHz. With six SATA III ports and two M.2 slots, it provides flexible storage options. The ATX form factor ensures compatibility with mid-tower and full-tower cases. Additional features include Realtek RTL8111H Gigabit Ethernet for fast networking and RealTek ALC887 8-channel high-definition audio for immersive sound.
Additional information
| Weight | 2.37 lbs |
|---|---|
| Dimensions | 13 × 10.5 × 2.2 in |
| Chipset | Intel H470 |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode)<br />4 x PCIe 3.0 x1 |
| Audio Codec | Realtek ALC887 (8-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| ROM | 128 Mb |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 5, 10 |
| CPU Socket | LGA 1200 |
| Optane Memory Support | Yes |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 2.0 x2, SATA (Unspecified)) |
| SATA | 6 x SATA III |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Realtek RTL8111H Gigabit |
| Display | 1 x DisplayPort 1.4<br />1 x HDMI 1.4b |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 3 USB Type-A Port) |
| Form Factor | ATX |
