Power Your Workstation with ASUS Pro WS X570-ACE
The ASUS Pro WS X570-ACE AM4 ATX Motherboard is engineered for professionals tackling demanding workloads such as AI training, deep learning, animation, 3D rendering, and media production. With its robust AMD X570 chipset, this motherboard is the backbone for a high-performance workstation.
Key Features:
- Supports 2nd and 3rd Gen AMD Ryzen processors with AM4 socket
- Four DDR4 RAM slots for up to 128GB dual-channel memory
- Four SATA III ports and two M.2 slots for storage

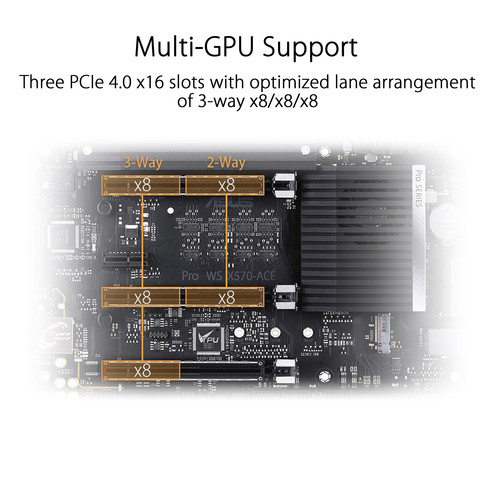

- Three PCIe 4.0 x16 slots for graphics cards (x8/x8/x8 when all slots are used)
- Single PCIe 4.0 x1 slot for additional PCI-based hardware

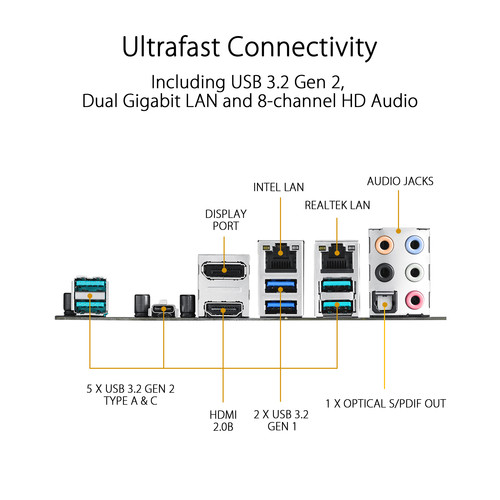

- Dual Gigabit LAN for high-speed networking
- Realtek S1200A 8-channel HD audio for professional audio needs
This motherboard is designed to handle intensive tasks with ease. The support for third-generation AMD Ryzen processors and PCIe 4.0 ensures top-notch performance and future-proofing. With ample storage options and high-speed networking, professionals can work efficiently without interruptions.
The ASUS Pro WS X570-ACE is perfect for creators and professionals who require a reliable and powerful motherboard to drive their workstations. Whether you’re rendering complex 3D models or training AI models, this motherboard delivers the performance and features needed to stay ahead.
Additional information
| Weight | 4.48 lbs |
|---|---|
| Dimensions | 15.6 × 12.4 × 3 in |
| Chipset | AMD X570 |
| Expansion Slots | 3 x PCIe 4.0 x16<br />1 x PCIe 4.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek S1200A (8-Channel) |
| I/O Connection Headers | AAFP |
| ROM | 256 Mb |
| Legacy | 1 x Serial |
| Diagnostics | Clear CMOS |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin Assistant<br />3 x 4-Pin System |
| Multi-GPU Support | 2-Way NVIDIA SLI<br />3-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 10 |
| CPU Socket | AM4 |
| U.2 | 1 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)<br />1 x M Key 2242, 2260, 2280 (PCIe 4.0 x2) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 MHz |
| Memory Slots | 4 x 288-Pin |
| Ethernet / Controller | 1 x Realtek RTL8117 Gigabit<br />1 x Intel I211-AT Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
